Product introduction:

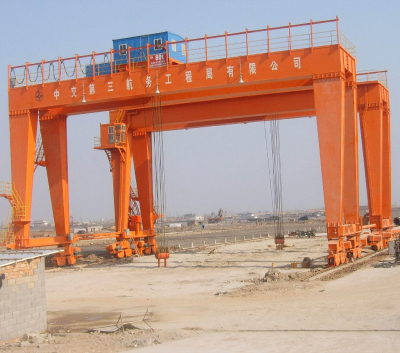

Double girder gantry crane is applicable to factory, highway,bridge,power station etc. to load and unload,hoist, transport work.
It consists of four main parts,namely the bridge structure,the crane traveling mechanism,the trolley and the electric equipment.All movements of the crane are controlled in the cabin. Crane has two conductive form, namely Cable and Sliding contact line. Please choose one form and tell us the crane’s working environment and Power source.
It has box type and truss type gantry crane depending on using environment.
- Place of Origin: HE NAN
- Brand Name: SHENGHUAYUAN
- Model Number: MGsh
Main Hook | 10 | 16 | 20 | 32 | 50 | |
Aux Hook | 3.2 | 5 | 5 | 10 | ||
Span(m) | 18-35 | |||||
Lifting Height(m) | 12 or customized | |||||
Speed(m/min) | Main Hook | 8.6 | 7.9 | 6 | 7.5 | 5.9 |
Aux Hook | 10.9 | 9.35 | 9.35 | 8.6 | ||
Trolley Travelling | 27 | 27 | 27 | 25 | 25 | |
Crane Travelling | 23 | |||||
Crane Rail Recommend | QU70 | QU70 | QU80 | QU100 | QU80 | |
Power source | 3-Phase A.C.50Hz 380V | |||||
The Capacity can be customized as clients’ detail demand. | ||||||
