- Place of Origin: Henan,China
- Brand Name: SHENGHUAYUAN
- Model Number: HS-JQJ

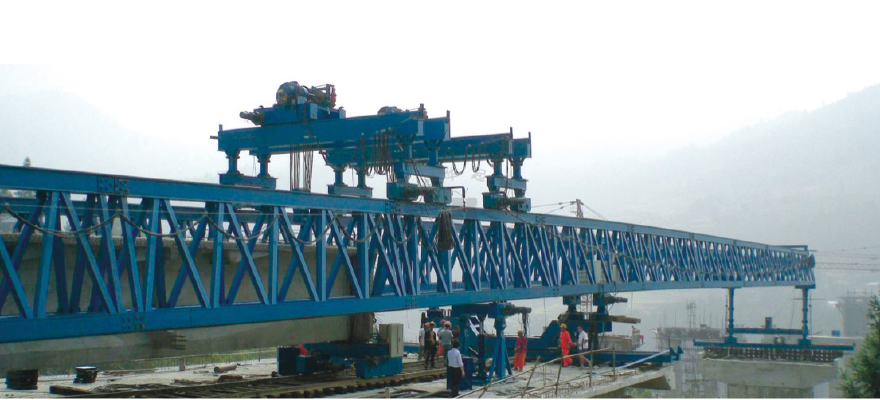

The girder launcher is also divided into different types, including highway type, railway type, Highway railway dual purpose type, segment assembled type and transportating and erecting type. It is a walking type girder launcher and is one of our newly developed products. Its main girder is designed with a truss structure, and is welded using structural steel and steel plates to provide a lightweight and strong wind resistance. This product is designed to suit the building of high gradient, small radius curved bridges, 45 degree inclined bridges and bridges near tunnels. It also makes construction on plains areas much easier.

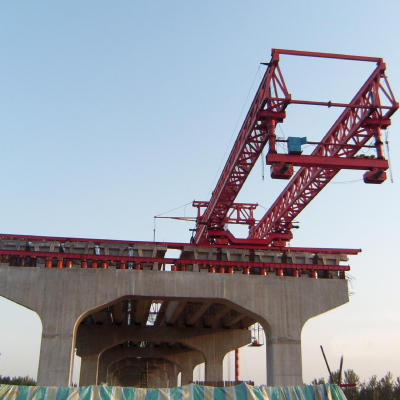

Highway bridge girder erection machine is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like U-beam,T-beam,box-beam,etc. It’s very suitable for bridge construction over river, valley and highway construction.
- Place of Origin: Henan,China
- Brand Name: SHENGHUAYUAN
- Model Number: HS-JQJ
Name | Model | Working class | Lifting height(m) | Adaptive longitudinal slope | Applied angle | Power source | ||
Girder launcher | SH-JQJ | A3 | 5.5m | 5% | 45° | 3 phase,AC | ||
Capacity | Span (m) | Lifting speed (m) | Crane Moving speed | Trolley Moving speed | Total power | Adaptive cross slope | ||
Transverse moving | Longitudinal moving | Transverse moving | Longitudinal moving | |||||
100T | 30 | 0.79m | 1.5 | 3 | 1.5 | 3 | 65 | 2.50% |
120T | 30 | 0.79m | 1.5 | 3 | 1.5 | 3 | 65 | 2.50% |
160T | 40 | 0.7m | 2.25 | 4.25 | 2.25 | 4.25 | 75 | 2.50% |
200T | 50 | 0.9m | 1.5 | 2 | 1.5 | 2 | 110 | 2.50% |
300T | 50 | 0.7m | 1.5 | 2 | 1.5 | 2 | 150 | 2.50% |
The parameters can be customized depending on customer’s need. | ||||||||
